PAR56 LED Retrofit Solutions
PAR56 LED Retrofit Lamps

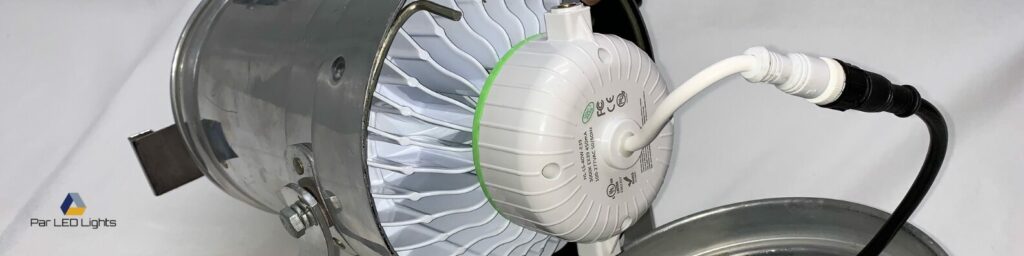

PAR56 LED retrofit lamps replace traditional halogen PAR56 lamps in existing PAR can fixtures. These drop-in LED lamps help reduce energy use, lower heat output, extend lamp life, and enhance lighting performance without requiring a full fixture replacement.
PAR56 retrofit lamps are commonly used in churches, platforms, stages, retail displays, restaurants, commercial spaces, and other applications where existing PAR56 cans remain in place, but the lighting needs modernization.

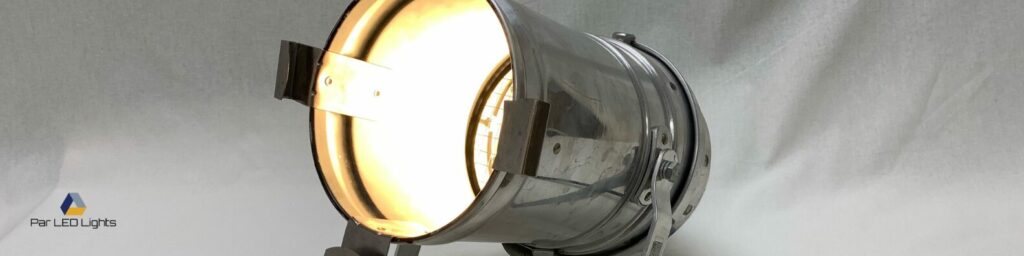

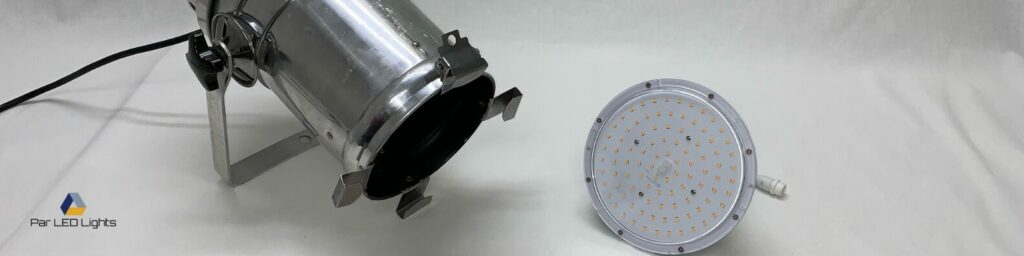

Traditional PAR56 lamps produce excessive heat, waste unnecessary power, and require frequent relamping, particularly in high-mounted fixtures that are accessible only by ladders or lifts. Lotus PAR56 LED retrofit lamps replace older PAR56 lamps without requiring fixture replacement.
One lamp, selectable output: Each PAR56 Lotus lamp includes selectable 40W and 60W output, plus 3000K, 4000K, and 5000K white color-temperature settings. Choose the beam angle and connector when ordering.
| LED Lamp Setting | Replaces | PAR Size | Best Use |
|---|---|---|---|
| 40W PAR56 LED Setting | 300W halogen | PAR56 | Smaller PAR cans, displays, accent lighting, platform lighting |
| 60W PAR56 LED Setting | 500W halogen | PAR56 | Churches, retail spaces, commercial spaces, brighter platform lighting |
PAR56 Beam & Connector Options
PAR56 15° Spot Beam
Best for focused spotlighting and tighter throws. Choose the connector that matches your installation.
PAR56 25° Narrow Flood
Best for pulpit, platform, display, and tighter wash lighting. Choose the connector that matches your installation.
PAR56 40° Flood Light
Best for broader room and stage coverage. Choose the connector that matches your installation.
PAR56 120° Wide Flood
Best for very widespread and short-throw applications. Choose the connector that matches your installation.
Not Sure Which PAR56 Configuration to Choose?
Compare all eight PAR56 beam-angle and connector configurations, or send us your fixture details for help choosing the right setup.
PAR56 Beam Quick Guide
15°: Narrow, focused light for tight spotlighting and longer throws.
25°: A strong option for stage, platform, pulpit, and display lighting.
40°: Useful for broader flood lighting and smoother general coverage.
120°: Best for wide-area coverage and short-throw applications.
Target Applications

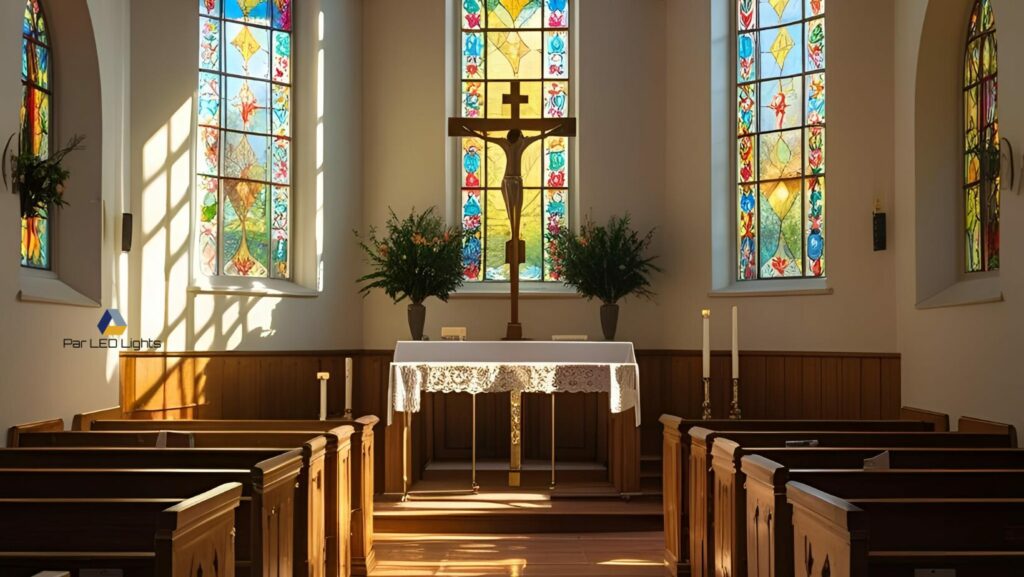

Church lighting: A strong fit for sanctuaries, platforms, choir areas, and worship spaces.
Retail lighting: Useful for displays, feature walls, product areas, and accent lighting.
Restaurant lighting: Helps restaurants and bars create flexible lighting from daytime service to evening ambiance.
Stage and theater lighting: Supports smaller stages, platforms, and controlled lighting zones.

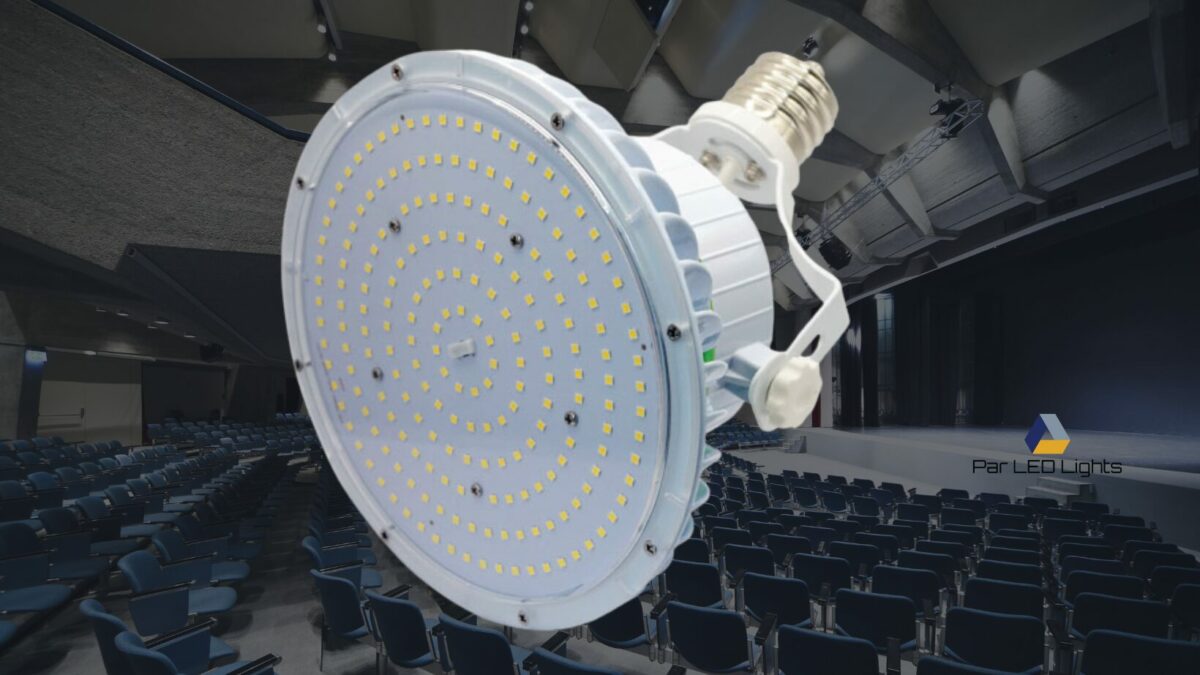

Auditorium lighting: Improves visibility and reduces maintenance in performance and presentation spaces.
High ceiling lighting: Ideal for commercial spaces, galleries, lobbies, and areas that need long-throw illumination.
Frequently Asked Questions
PAR64 = 100W / 150W (Diameter: 8” x Height 7.6” x Weight 2.2 lb.)
40W = 300W PAR Halogen Equivalent
60W = 500W PAR Halogen Equivalent
100W = 1000W PAR Halogen Equivalent
150W = 1500W PAR Halogen Equivalent
3000K - Warm
4000K – Neutral White
5000K – Cool White
25° - Narrow Flood Beam
40° - Flood Beam
120° - Wide Flood Beam
GX16D – For inside Par Can Connection
WC2 – Allows the Lamp to be wired directly into the line. (Need a professional Electrician)
