PAR Halogen Replacement Guide
Compare 40W, 60W, 100W, and 150W Lotus Lamp Options
Choosing the right PAR LED retrofit lamp depends on the size of your existing PAR can, the wattage you are replacing, the amount of light needed, and the beam angle required for the space.
PAR56 LED lamps are commonly used to replace 300W and 500W halogen PAR lamps, while PAR64 LED lamps are better suited for high-output stage, theater, auditorium, and commercial applications where 1000W or 1500W halogen lamps were previously used.
HyLite LED Lotus Lamps offer efficient, long-life retrofit options for existing PAR can fixtures, helping facilities reduce energy use, lower heat output, improve reliability, and reduce ongoing maintenance.
PAR LED Retrofit Wattage Comparison
Use this table to match your existing halogen lamp to the right PAR LED retrofit option.
| LED Retrofit Lamp | Replaces | PAR Size | Best Use | Recommended Page |
|---|---|---|---|---|
| 40W PAR56 LED | 300W halogen | PAR56 | Smaller PAR cans, displays, platforms, and accent lighting | PAR56 LED retrofit lamps |
| 60W PAR56 LED | 500W halogen | PAR56 | Churches, retail, commercial spaces, brighter platform lighting | 40W and 60W PAR56 LED lamps |
| 100W PAR64 LED | 1000W halogen | PAR64 | Theaters, auditoriums, stages, event venues | PAR64 LED retrofit lamps |
| 150W PAR64 LED | 1500W halogen | PAR64 | High-output lighting, large venues, long-throw applications | 100W and 150W PAR64 LED lamps |
Matching LED Wattage to Halogen Replacement
LED retrofit lamps use significantly less wattage than traditional halogen lamps while producing strong usable light output. When choosing a replacement, do not compare LED wattage and halogen wattage directly. Instead, compare the intended replacement equivalent, PAR size, beam angle, and application.
For broader retrofit planning, review our PAR can LED retrofit kits and PAR halogen replacement guide.

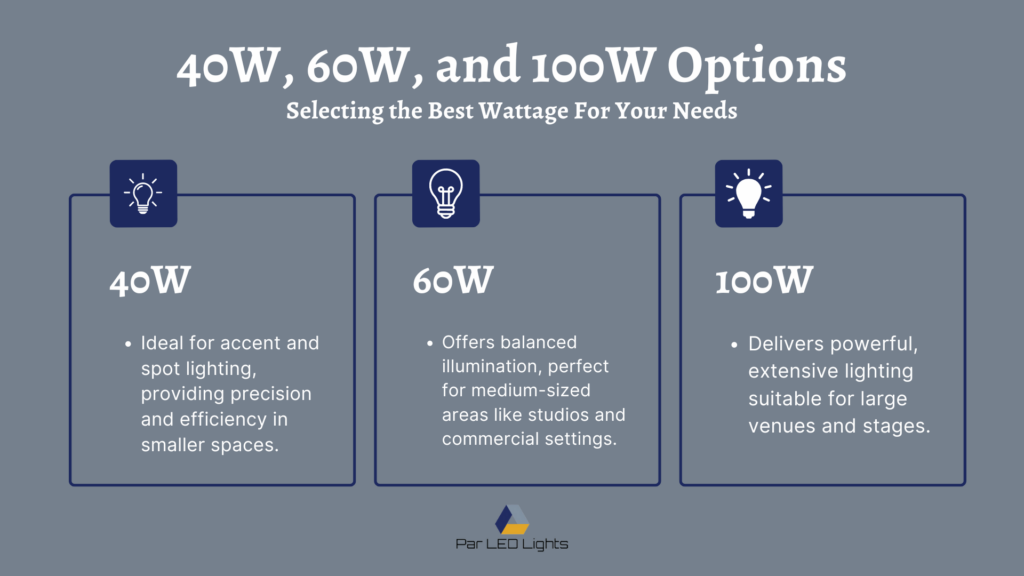

40W vs. 60W PAR56 LED Lamps
A 40W PAR56 LED retrofit lamp is commonly used as a replacement for a 300W halogen PAR lamp. It is a good option for smaller PAR cans, displays, platforms, accent lighting, and lower-output applications.
A 60W PAR56 LED retrofit lamp is commonly used as a replacement for a 500W halogen PAR lamp. It is better for brighter platform lighting, churches, commercial spaces, retail environments, and applications that require more output from a PAR56 fixture.
100W vs. 150W PAR64 LED Lamps
A 100W PAR64 LED retrofit lamp is commonly used as a replacement for a 1000W halogen PAR lamp. It is a strong option for theaters, auditoriums, churches, school stages, event venues, and medium-to-large stage lighting applications.
A 150W PAR64 LED retrofit lamp is commonly used as a replacement for a 1500W halogen PAR lamp. It is best suited for high-output lighting, large venues, long-throw applications, and spaces where maximum output is needed from an existing PAR64 can.
Choosing the Right Beam Angle
Beam angle is just as important as wattage. A narrow beam angle creates a focused spot, while a wider beam angle covers more area. Choose a 15° or 25° beam for more focused lighting, a 40° beam for broader coverage, and a 120° beam for wide-area illumination.
15° beam: Best for focused spot lighting, longer throws, and tighter target areas.
25° beam: Useful for stage, platform, pulpit, and display lighting where controlled coverage is needed.
40° beam: Good for broader coverage, smoother wash lighting, and general venue illumination.
120° beam: Best for wide-area illumination and short-throw applications.
For a deeper look at lamp types and beam spread, visit our PAR lamp guide.
Durability and Protection
HyLite LED Lotus Lamps are engineered with advanced technical features to support long operating life in demanding environments. A proprietary die-cast heat sink helps improve thermal management by dissipating heat and protecting performance over time.
An IP65 rating helps protect against dust ingress and low-pressure water jets, making these lamps suitable for indoor, semi-exposed, and more demanding environments.
Each lamp also includes a robust 20kA surge protection device to help safeguard electronics from voltage spikes and power surges.
Versatility and Installation
HyLite LED Lotus Lamps are designed for convenient retrofit installation into existing PAR can fixtures. The plug-and-play approach helps facilities transition to energy-efficient LED technology without complex rewiring or a full fixture replacement.
Adjustable beam angles, selectable color temperature, dimming compatibility, and long lamp life make these retrofit lamps adaptable for churches, stages, auditoriums, commercial spaces, and high-output lighting applications.
Widely Used Applications
The right wattage depends on the fixture size, ceiling height, beam angle, and lighting goal. Lower-output lamps are a strong fit for smaller spaces and accent lighting, while higher-output lamps are better suited for large venues and longer throws.
40W PAR56: Ideal for small spaces, displays, accent lighting, track-style lighting, and platform lighting.
60W PAR56: Great for churches, retail areas, commercial interiors, brighter platforms, and medium-output applications.
100W PAR64: Strong for theaters, auditoriums, stages, event venues, and medium-to-large lighting applications.
150W PAR64: Best for large venues, high-output stage lighting, long-throw applications, and spaces that previously used 1500W halogen lamps.
For stage-specific applications, review our PAR64 LED stage lights.
Lumens to Watts Conversion
The traditional approach of selecting light bulbs based only on wattage is outdated. In today’s LED era, lumens are a better measure of usable brightness.
LEDs are significantly more efficient than incandescent and halogen bulbs, producing more usable light with far less energy. That is why a 40W, 60W, 100W, or 150W LED retrofit lamp can replace much higher-wattage halogen lamps.
Ready to Buy?
Shop PAR LED retrofit lamps online, compare PAR56 and PAR64 options, or contact our team for help choosing the right wattage, beam angle, and retrofit setup for your space.
